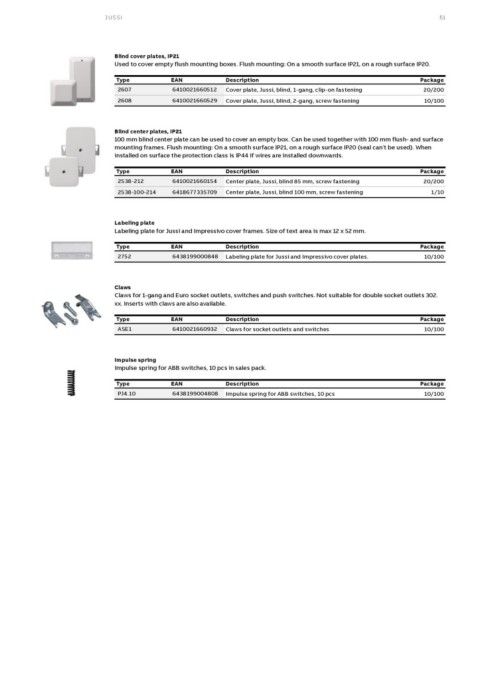

JUSSI 51

Blind cover plates, IP21
Used to cover empty flush mounting boxes. Flush mounting: On a smooth surface IP21, on a rough surface IP20.

Type EAN Description Package
2607 6410021660512 Cover plate, Jussi, blind, 1-gang, clip-on fastening 20/200
2608 6410021660529 Cover plate, Jussi, blind, 2-gang, screw fastening 10/100

Blind center plates, IP21
100 mm blind center plate can be used to cover an empty box. Can be used together with 100 mm flush- and surface
mounting frames. Flush mounting: On a smooth surface IP21, on a rough surface IP20 (seal can't be used). When
installed on surface the protection class is IP44 if wires are installed downwards.

Type EAN Description Package
2538-212 6410021660154 Center plate, Jussi, blind 85 mm, screw fastening 20/200
2538-100-214 6418677335709 Center plate, Jussi, blind 100 mm, screw fastening 1/10

Labeling plate
Labeling plate for Jussi and Impressivo cover frames. Size of text area is max 12 x 52 mm.

Type EAN Description Package
2752 10/100
6438199000848 Labeling plate for Jussi and Impressivo cover plates.

Claws
Claws for 1-gang and Euro socket outlets, switches and push switches. Not suitable for double socket outlets 302.
xx. Inserts with claws are also available.

Type EAN Description Package
ASE1 10/100
6410021660932 Claws for socket outlets and switches

Impulse spring
Impulse spring for ABB switches, 10 pcs in sales pack.

Type EAN Description Package
PJ4.10 10/100
6438199004808 Impulse spring for ABB switches, 10 pcs
