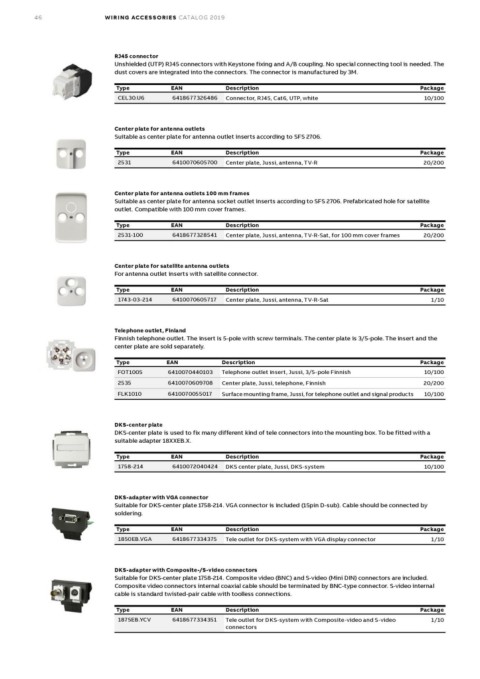

Page 46 - ABB_Wiring_Accessories_Impressivo_Jussi_catalog

46 WIRING ACCESSORIES CATALOG 2019

RJ45 connector
Unshielded (UTP) RJ45 connectors with Keystone fixing and A/B coupling. No special connecting tool is needed. The
dust covers are integrated into the connectors. The connector is manufactured by 3M.

Type EAN Description Package
CEL30.U6 10/100
6418677326486 Connector, RJ45, Cat6, UTP, white

Center plate for antenna outlets
Suitable as center plate for antenna outlet inserts according to SFS 2706.

Type EAN Description Package
2531 20/200
6410070605700 Center plate, Jussi, antenna, TV-R

Center plate for antenna outlets 100 mm frames
Suitable as center plate for antenna socket outlet inserts according to SFS 2706. Prefabricated hole for satellite
outlet. Compatible with 100 mm cover frames.

Type EAN Description Package
2531-100 20/200
6418677328541 Center plate, Jussi, antenna, TV-R-Sat, for 100 mm cover frames

Center plate for satellite antenna outlets
For antenna outlet inserts with satellite connector.

Type EAN Description Package
1743-03-214 6410070605717 Center plate, Jussi, antenna, TV-R-Sat 1/10

Telephone outlet, Finland
Finnish telephone outlet. The insert is 5-pole with screw terminals. The center plate is 3/5-pole. The insert and the
center plate are sold separately.

Type EAN Description Package
FOT1005 6410070440103 Telephone outlet insert, Jussi, 3/5-pole Finnish 10/100
2535 6410070609708 Center plate, Jussi, telephone, Finnish 20/200
FLK1010 6410070055017 Surface mounting frame, Jussi, for telephone outlet and signal products 10/100

DKS-center plate
DKS-center plate is used to fix many different kind of tele connectors into the mounting box. To be fitted with a
suitable adapter 18XXEB.X.

Type EAN Description Package
1758-214 10/100
6410072040424 DKS center plate, Jussi, DKS-system

DKS-adapter with VGA connector
Suitable for DKS-center plate 1758-214. VGA connector is included (15pin D-sub). Cable should be connected by
soldering.

Type EAN Description Package
1850EB.VGA 6418677334375 Tele outlet for DKS-system with VGA display connector 1/10

DKS-adapter with Composite-/S-video connectors
Suitable for DKS-center plate 1758-214. Composite video (BNC) and S-video (Mini DIN) connectors are included.
Composite video connectors internal coaxial cable should be terminated by BNC-type connector. S-video internal
cable is standard twisted-pair cable with toolless connections.

Type EAN Description Package
1875EB.YCV 6418677334351 1/10
Tele outlet for DKS-system with Composite-video and S-video
connectors
