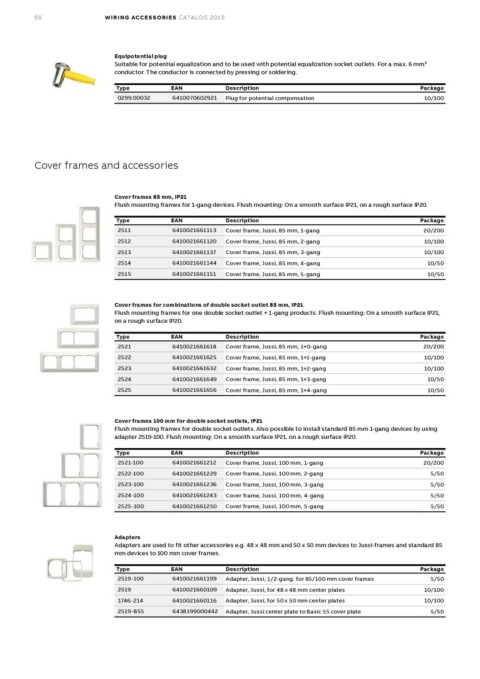

50 WIRING ACCESSORIES CATALOG 2019

Equipotential plug
Suitable for potential equalization and to be used with potential equalization socket outlets. For a max. 6 mm²
conductor. The conductor is connected by pressing or soldering.

Type EAN Description Package
0299.00032 10/100
6410070602921 Plug for potential compensation

Cover frames and accessories

Cover frames 85 mm, IP21
Flush mounting frames for 1-gang devices. Flush mounting: On a smooth surface IP21, on a rough surface IP20.

Type EAN Description Package
2511 6410021661113 Cover frame, Jussi, 85 mm, 1-gang 20/200
2512 6410021661120 Cover frame, Jussi, 85 mm, 2-gang 10/100
2513 6410021661137 Cover frame, Jussi, 85 mm, 3-gang 10/100
2514 6410021661144 Cover frame, Jussi, 85 mm, 4-gang 10/50
2515 6410021661151 Cover frame, Jussi, 85 mm, 5-gang 10/50

Cover frames for combinations of double socket outlet 85 mm, IP21
Flush mounting frames for one double socket outlet + 1-gang products. Flush mounting: On a smooth surface IP21,
on a rough surface IP20.

Type EAN Description Package
2521 6410021661618 Cover frame, Jussi, 85 mm, 1+0-gang 20/200
2522 6410021661625 Cover frame, Jussi, 85 mm, 1+1-gang 10/100
2523 6410021661632 Cover frame, Jussi, 85 mm, 1+2-gang 10/100
2524 6410021661649 Cover frame, Jussi, 85 mm, 1+3-gang 10/50
2525 6410021661656 Cover frame, Jussi, 85 mm, 1+4-gang 10/50

Cover frames 100 mm for double socket outlets, IP21
Flush mounting frames for double socket outlets. Also possible to install standard 85 mm 1-gang devices by using
adapter 2519-100. Flush mounting: On a smooth surface IP21, on a rough surface IP20.

Type EAN Description Package
2521-100 6410021661212 Cover frame, Jussi, 100 mm, 1-gang 20/200
2522-100 6410021661229 Cover frame, Jussi, 100 mm, 2-gang 5/50
2523-100 6410021661236 Cover frame, Jussi, 100 mm, 3-gang 5/50
2524-100 6410021661243 Cover frame, Jussi, 100 mm, 4-gang 5/50
2525-100 6410021661250 Cover frame, Jussi, 100 mm, 5-gang 5/50

Adapters
Adapters are used to fit other accessories e.g. 48 x 48 mm and 50 x 50 mm devices to Jussi-frames and standard 85
mm devices to 100 mm cover frames.

Type EAN Description Package
2519-100 6410021661199 Adapter, Jussi, 1/2-gang. for 85/100 mm cover frames 5/50
2519 6410021660109 Adapter, Jussi, for 48 x 48 mm center plates
1746-214 6410021660116 Adapter, Jussi, for 50 x 50 mm center plates 10/100
2519-B55 6438199000442 Adapter, Jussi center plate to Basic 55 cover plate 10/100

5/50
