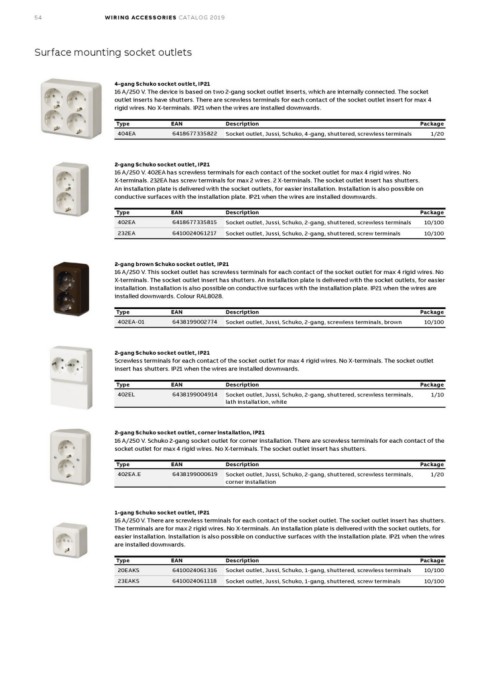

54 WIRING ACCESSORIES CATALOG 2019

Surface mounting socket outlets

4-gang Schuko socket outlet, IP21
16 A/250 V. The device is based on two 2-gang socket outlet inserts, which are internally connected. The socket
outlet inserts have shutters. There are screwless terminals for each contact of the socket outlet insert for max 4
rigid wires. No X-terminals. IP21 when the wires are installed downwards.

Type EAN Description Package
404EA
6418677335822 Socket outlet, Jussi, Schuko, 4-gang, shuttered, screwless terminals 1/20

2-gang Schuko socket outlet, IP21
16 A/250 V. 402EA has screwless terminals for each contact of the socket outlet for max 4 rigid wires. No
X-terminals. 232EA has screw terminals for max 2 wires. 2 X-terminals. The socket outlet insert has shutters.
An installation plate is delivered with the socket outlets, for easier installation. Installation is also possible on
conductive surfaces with the installation plate. IP21 when the wires are installed downwards.

Type EAN Description Package
402EA 6418677335815 Socket outlet, Jussi, Schuko, 2-gang, shuttered, screwless terminals 10/100
232EA 6410024061217 Socket outlet, Jussi, Schuko, 2-gang, shuttered, screw terminals 10/100

2-gang brown Schuko socket outlet, IP21
16 A/250 V. This socket outlet has screwless terminals for each contact of the socket outlet for max 4 rigid wires. No
X-terminals. The socket outlet insert has shutters. An installation plate is delivered with the socket outlets, for easier
installation. Installation is also possible on conductive surfaces with the installation plate. IP21 when the wires are
installed downwards. Colour RAL8028.

Type EAN Description Package
402EA-01 10/100
6438199002774 Socket outlet, Jussi, Schuko, 2-gang, screwless terminals, brown

2-gang Schuko socket outlet, IP21
Screwless terminals for each contact of the socket outlet for max 4 rigid wires. No X-terminals. The socket outlet
insert has shutters. IP21 when the wires are installed downwards.

Type EAN Description Package
402EL 6438199004914 1/10
Socket outlet, Jussi, Schuko, 2-gang, shuttered, screwless terminals,
lath installation, white

2-gang Schuko socket outlet, corner installation, IP21
16 A/250 V. Schuko 2-gang socket outlet for corner installation. There are screwless terminals for each contact of the
socket outlet for max 4 rigid wires. No X-terminals. The socket outlet insert has shutters.

Type EAN Description Package
402EA.E 6438199000619 1/20
Socket outlet, Jussi, Schuko, 2-gang, shuttered, screwless terminals,
corner installation

1-gang Schuko socket outlet, IP21
16 A/250 V. There are screwless terminals for each contact of the socket outlet. The socket outlet insert has shutters.
The terminals are for max 2 rigid wires. No X-terminals. An installation plate is delivered with the socket outlets, for
easier installation. Installation is also possible on conductive surfaces with the installation plate. IP21 when the wires
are installed downwards.

Type EAN Description Package
20EAKS 6410024061316 Socket outlet, Jussi, Schuko, 1-gang, shuttered, screwless terminals 10/100
23EAKS 6410024061118 Socket outlet, Jussi, Schuko, 1-gang, shuttered, screw terminals 10/100
