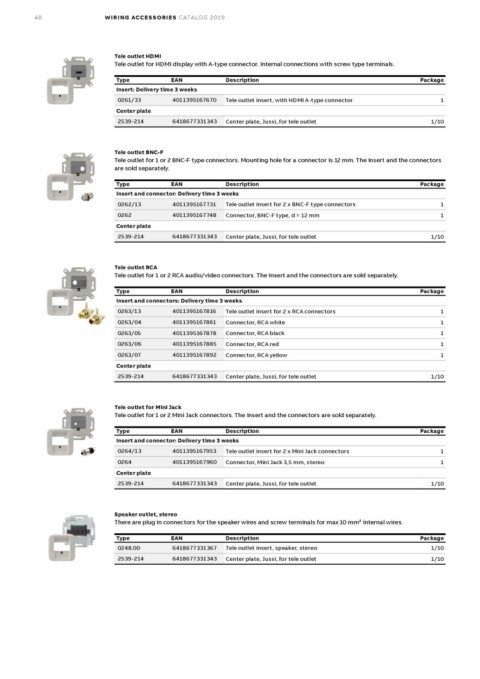

48 WIRING ACCESSORIES CATALOG 2019
Tele outlet HDMI
Tele outlet for HDMI display with A-type connector. Internal connections with screw type terminals.
Type EAN Description Package
Tele outlet insert, with HDMI A-type connector 1
Insert: Delivery time 3 weeks Center plate, Jussi, for tele outlet
1/10
0261/33 4011395167670
Center plate
2539-214 6418677331343
Tele outlet BNC-F
Tele outlet for 1 or 2 BNC-F type connectors. Mounting hole for a connector is 12 mm. The insert and the connectors
are sold separately.
Type EAN Description Package
Insert and connector: Delivery time 3 weeks 1
1
0262/13 4011395167731 Tele outlet insert for 2 x BNC-F type connectors
1/10
0262 4011395167748 Connector, BNC-F type, d = 12 mm
Center plate
2539-214 6418677331343 Center plate, Jussi, for tele outlet
Tele outlet RCA
Tele outlet for 1 or 2 RCA audio/video connectors. The insert and the connectors are sold separately.
Type EAN Description Package
Insert and connectors: Delivery time 3 weeks 1
1
0263/13 4011395167816 Tele outlet insert for 2 x RCA connectors 1
1
0263/04 4011395167861 Connector, RCA white 1
0263/05 4011395167878 Connector, RCA black 1/10
0263/06 4011395167885 Connector, RCA red
0263/07 4011395167892 Connector, RCA yellow
Center plate
2539-214 6418677331343 Center plate, Jussi, for tele outlet
Tele outlet for Mini Jack
Tele outlet for 1 or 2 Mini Jack connectors. The insert and the connectors are sold separately.
Type EAN Description Package
Insert and connector: Delivery time 3 weeks 1
1
0264/13 4011395167953 Tele outlet insert for 2 x Mini Jack connectors
1/10
0264 4011395167960 Connector, Mini Jack 3,5 mm, stereo
Center plate
2539-214 6418677331343 Center plate, Jussi, for tele outlet
Speaker outlet, stereo
There are plug in connectors for the speaker wires and screw terminals for max 10 mm² internal wires.
Type EAN Description Package
0248.00 6418677331367 Tele outlet insert, speaker, stereo 1/10
2539-214 6418677331343 Center plate, Jussi, for tele outlet 1/10
